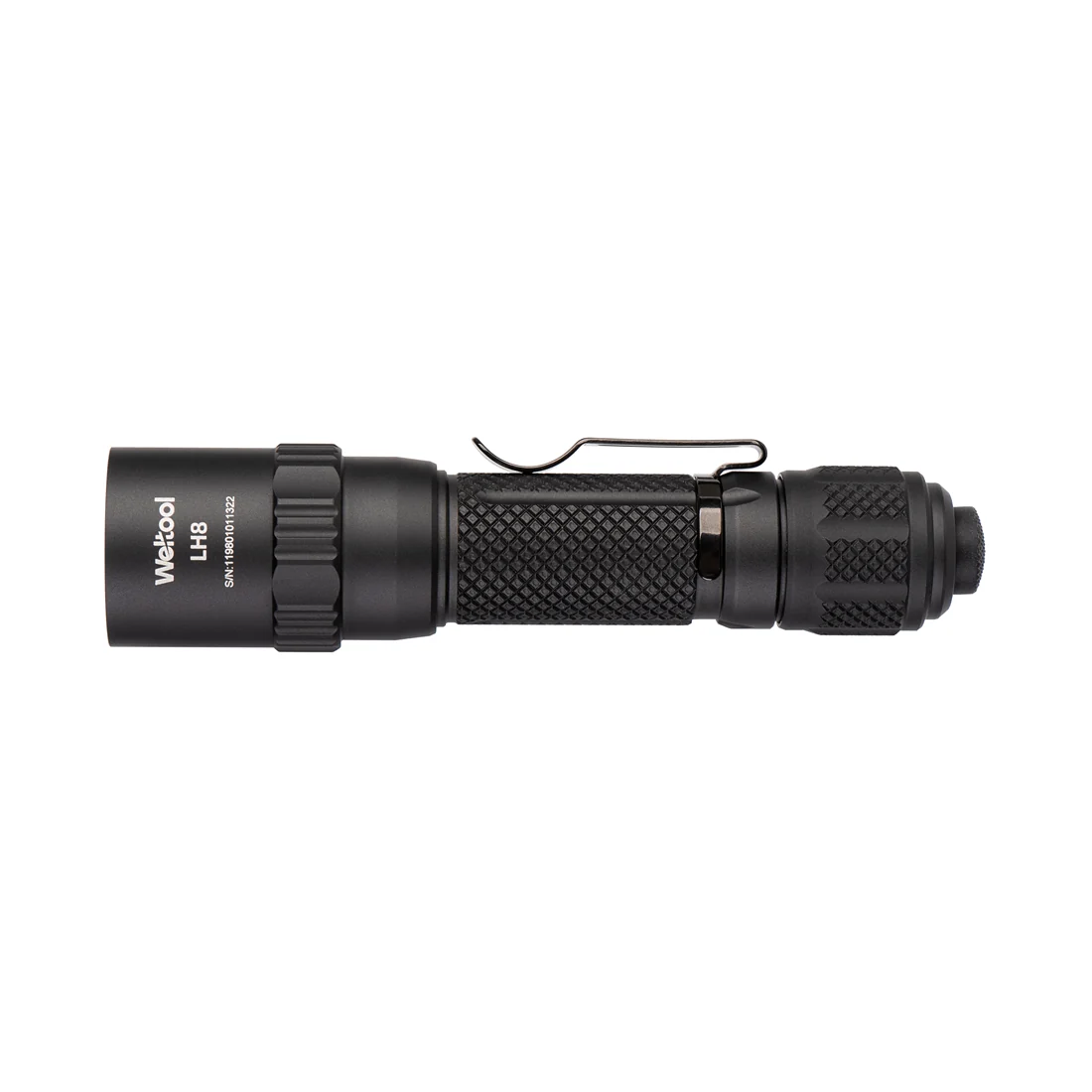

Weltool T14 Modular 18650 Single-Mode LED Handheld Light

The Weltool T14 is a modular 18650 single-mode LED handheld light built for users who need a powerful, straightforward lighting tool for EDC, professional work, outdoor use, travel, or emergency preparedness. It combines the LH8 weapon light head, BB18 body, and TC20 tail cover into a durable handheld configuration. The forward-click tail switch supports momentary activation as well as constant full-power output, providing a simple and dependable interface without complicated mode selections.

Three configurations are available, each offering a different balance of beam intensity, throw, and luminous flux. The T14B V2 has a 5700K color temperature. With an 18650 battery, it produces 1,660 lm, reaches 128,000cd, delivers a distance of 781yd, and has a runtime of 1h53min. With 2*CR123A batteries, it produces 589 lm, reaches 38,760 cd, delivers a distance of 429yd, and runs for 53min.

The T14B also has a 5700K color temperature and is designed for users who prioritize a farther-reaching beam. With an 18650 battery, it produces 1,250 lm, reaches 83,900 cd, delivers a distance of 633yd, and has a runtime of 1.5h. With 2*CR123A batteries, output is 456 lm with 35,600 cd, a distance of 412yd, and a runtime of 1.25h.

The T14C features a 6500K color temperature and a larger luminous flux. Powered by an 18650 battery, it delivers 1,750 lm, 77,000 cd, a distance of 605yd, and a runtime of 1.5h. With 2*CR123A batteries, it produces 558 lm, reaches 27,200 cd, delivers a distance of 359yd, and runs for 1.25h.

The T14 accepts 1 Rechargeable High Drain 18650 Li-ion battery or 2 CR123A batteries. Testing data was obtained in an outdoor ventilation environment using a Weltool UB18-30P or UB18-34P Li-ion battery or Panasonic and Duracell CR123A lithium battery. Its modular design is compatible with most Weltool weapon light accessories and is compatible with surefire M600DF, allowing the light to transition easily between handheld and weapon-mounted applications.

The tail push-button switch is rated for 50,000 press cycles and can handle 10A. Additional protections include polarity protection, a low-battery reminder function, battery over-discharge protection, and temperature-control protection. The light produces no flicker and no noise, and its double-sided AR-coated tempered glass lens supports clear, efficient light transmission.

Built for demanding use, the T14 has passed a 1 meter drop test and carries an IP67 rating. Each light has a unique serial number. Dimensions are 31.5mm at the head and 138mm±0.5mm in length. Weight is 108g ± 0.5g, excluding the battery.

Included are a Rechargeable High Drain 18650 Li-ion battery, Charger, Stainless Steel Pocket Clip, and O-ring.

Weltool T14 Features:

	T14B V2		T14B		T14C
CCT	5700K		5700K		6500K
Battery*	18650	2*CR123A	18650	2*CR123A	18650	2*CR123A
Light Output	1,660 lm	589 lm	1,250 lm	456 lm	1,750 lm	558 lm
Beam intensity	128,000cd	38,760 cd	83,900 cd	35,600 cd	77,000 cd	27,200 cd
Distance	781yd	429yd	633yd	412yd	605yd	359yd
Runtime	1h53min	53min	1.5h	1.25h	1.5h	1.25h



*Using Weltool UB18-30P or UB18-34P Li-ion battery or Panasonic and Duracell CR123A lithium battery, the data obtained from outdoor ventilation environment testing.

Battery type: 1 Rechargeable High Drain 18650 Li-ion battery or 2 CR123A batteries

Switch: Tail push button switch, 50,000 press cycles, can handle 10A

With polarity protection

With low battery reminder function, battery over-discharge protection function

No flicker, no noise, and temperature control protection

Double-sided AR-coated tempered glass lens

Passed 1 meter drop test

IP67

Each light has a unique serial number

Dimensions: (head diameter) 31.5mm, (length) 138mm±0.5mm

Weight: 108g ± 0.5g (excluding battery)

Included: Rechargeable High Drain 18650 Li-ion battery, Charger,Stainless Steel Pocket Clip，O-ring
